Predicting the continuous, perturbed development of the zebrafish

Similary to 200_zebrafish_continuous, we make use of the ZSCAPE dataset, which captures up to 23 perturbations at 5 different time points. Here, we leverage CellFlow to interpolate the perturbed development at densely sampled time points.

Preliminaries

import warnings
from pandas.errors import SettingWithCopyWarning

warnings.simplefilter("ignore", UserWarning)
warnings.simplefilter("ignore", FutureWarning)
warnings.simplefilter("ignore", SettingWithCopyWarning)

import numpy as np
import pandas as pd
import seaborn as sns
import jax
import functools
import matplotlib.pyplot as plt
import anndata as ad
import scanpy as sc
import rapids_singlecell as rsc
import flax.linen as nn
import optax
import cellflow
from cellflow.model import CellFlow
import cellflow.preprocessing as cfpp
from cellflow.utils import match_linear
from cellflow.plotting import plot_condition_embedding
from cellflow.preprocessing import transfer_labels, compute_wknn, centered_pca, project_pca, reconstruct_pca
from cellflow.metrics import compute_r_squared, compute_e_distance

/home/icb/dominik.klein/mambaforge/envs/cellflow/lib/python3.12/site-packages/optuna/study/_optimize.py:29: TqdmWarning: IProgress not found. Please update jupyter and ipywidgets. See https://ipywidgets.readthedocs.io/en/stable/user_install.html
  from optuna import progress_bar as pbar_module

adata = cellflow.datasets.zesta()

We focus on the Central Nervous System, thus subset the data accordingly. We recompute a UMAP.

adata = adata[adata.obs["tissue"] == "Central Nervous System"]

We check the most relevant columns:

• obs['timepoint'] the age of the embryo in hours post fertilization, as this covers a range from 18 to 72, we have created a columns "logtime" which stores the natural logarithm of "timepoint".

• obs['gene1+gene2'] contains the genetic perturbation, which can be a single or a double genetic knockout. CellFlow requires as many obs columns as the largest combination, which is 2 in our case. Hence, we created obs['gene_target_1'] and obs['gene_target_2'] which contain the single elements of the perturbation. Control cells have entries "control" in both columns, while single perturbations have "control" in obs['gene_target_2'].

• While not necessary for training CellFlow, it is handy to have obs['condition'], which contains the combination of the genetic perturbation and the time point.

• As we want to interpolate time points, we don’t limit CellFlow to learn mappings from control to perturbed within the same time point as done in Predicting embryonic phenotypes of genetically modified zebrafish, but we map from the first time point to all other time points. Hence, we use obs['first_t_control'] for indicating the source population.

adata.obs.head()

	cell	Size_Factor	n.umi	perc_mitochondrial_umis	timepoint	Oligo	hash_umis	top_to_second_best_ratio	cell_type_sub	cell_type_broad	...	hash_plate	log.hash_umis	gene1+gene2	gene_target_1	gene_target_2	condition	is_control	first_t_control	logtime	germ_layer_adapted
A03_B01_P01-A02_LIG257	A03_B01_P01-A02_LIG257	0.468889	213.0	0.938967	18.0	18h_ctrl-noto_P3_D7	24.0	21.347128	neural progenitor (hindbrain R7/8)	neural progenitor (hindbrain R7/8)	...	NA	NaN	control+negative	control	control	control_control_18	True	True	2.890372	ectoderm_neural_crest
A03_B01_P01-A03_LIG201	A03_B01_P01-A03_LIG201	0.537131	244.0	0.409836	48.0	48h_ctrl-noto_P16_H9	10.0	6.059433	neurons (differentiating, contains peripheral)	neurons (differentiating, contains peripheral)	...	NA	NaN	control+negative	control	control	control_control_48	True	False	3.871201	ectoderm_neural_crest
A03_B01_P01-A04_LIG84	A03_B01_P01-A04_LIG84	0.917965	417.0	0.719424	48.0	48h_ctrl-hgfa_P16_C2	26.0	16.216216	neurons (gabaergic, glutamatergic)	neurons (gabaergic, glutamatergic)	...	NA	NaN	control+negative	control	control	control_control_48	True	False	3.871201	ectoderm_neural_crest
A03_B01_P01-A06_LIG369	A03_B01_P01-A06_LIG369	0.565748	257.0	0.778210	36.0	36h_ctrl-inj_P16_C5	9.0	6.035159	neural progenitor (diencephalon/telencephalon)	neural progenitor (diencephalon/telencephalon)	...	NA	NaN	control+negative	control	control	control_control_36	True	False	3.583519	ectoderm_neural_crest
A03_B01_P01-A10_LIG80	A03_B01_P01-A10_LIG80	0.548138	249.0	2.008032	36.0	36h_ctrl-inj_P7_D8	14.0	12.918454	neurons (differentiating, contains peripheral)	neurons (differentiating, contains peripheral)	...	NA	NaN	control+negative	control	control	control_control_36	True	False	3.583519	ectoderm_neural_crest

5 rows × 36 columns

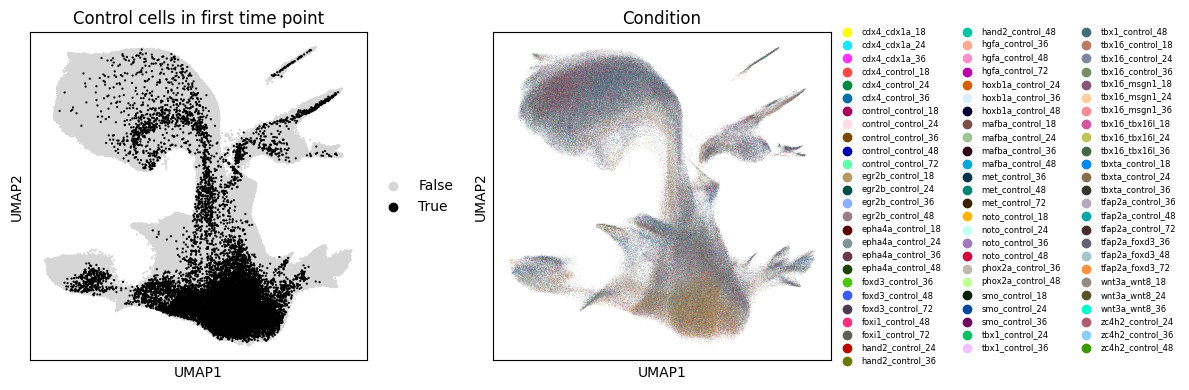

We recompute the UMAP, and visualize the source distribution (left), which is mapped onto all other cell populations (middle), as well as an embedding colored by cell types, whose continuous composition we want to learn.

rsc.pp.neighbors(adata, use_rep="X_aligned")
rsc.tl.umap(adata)

[2025-04-10 09:17:28.951] [CUML] [debug] n_neighbors=15
[2025-04-10 09:17:28.951] [CUML] [debug] Calling knn graph run
[2025-04-10 09:17:28.951] [CUML] [debug] Done. Calling fuzzy simplicial set
[2025-04-10 09:17:30.041] [CUML] [debug] Done. Calling remove zeros

order = list(adata[~adata.obs["first_t_control"].to_numpy()].obs_names) + list(adata[adata.obs["first_t_control"].to_numpy()].obs_names)
adata.obs["first_t_control_str"] = adata.obs["first_t_control"].astype(str)

# Create side-by-side plots
fig, axs = plt.subplots(1, 2, figsize=(12, 4))

# Plot 1: Highlight first_t_control
sc.pl.umap(
    adata[order],
    color="first_t_control_str",
    size=10,
    title="Control cells in first time point",
    palette={"True": "#000000", "False": "#D6D6D6"},
    show=False,
    ax=axs[0]
)

# Plot 2: Show condition
sc.pl.umap(
    adata,
    color="condition",
    title="Condition",
    show=False,
    ax=axs[1],
    legend_fontsize=6
)

plt.tight_layout()
plt.show()

We also have a closer look at the distribution which we leave out during training.

custom_palette = {k: "#D6D6D6" for k in adata.obs["condition"].unique()}
custom_palette.update({"cdx4_cdx1a_24": "#CEA92D"})
order = list(adata[adata.obs["condition"] != "cdx4_cdx1a_24"].obs_names) + \
        list(adata[adata.obs["condition"] == "cdx4_cdx1a_24"].obs_names)

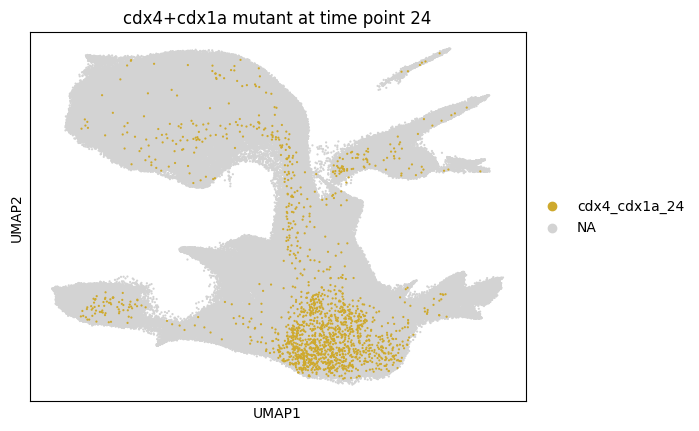

sc.pl.umap(
    adata[order],
    color="condition",
    groups=["cdx4_cdx1a_24"],
    palette=custom_palette,
    title="cdx4+cdx1a mutant at time point 24",
    size=10,
)

We split the data accordingly.

adata_train = adata[adata.obs["condition"]!="cdx4_cdx1a_24"].copy()
adata_test = adata[(adata.obs["condition"]=="cdx4_cdx1a_24") | (adata.obs["condition"]=="control_control_18")].copy()
adata_train.n_obs, adata_test.n_obs

(552284, 16581)

We use obsm['X_aligned'] as cellular representation, i.e. this is the space in which cells are generated. We note that the embedding was obtained from control cells only, with perturbed cells regressed onto it independently of other perturbed cells, such that we don’t have any data leakage from the test dataset. For details on the embedding, please refer to the ZSCAPE manuscript.

Setting up the CellFlow model

We are now ready to setup the CellFlow model.

Therefore, we first choose the flow matching solver. We select the default solver "otfm".

cf = CellFlow(adata_train, solver="otfm")

Preparing CellFlow’s data handling with prepare_data()

• As discussed above, we use obsm['X_aligned'] as cellular representation.

• obs['first_t_control'] indicates whether a cell is a control cell.

• perturbation_covariates indicates the external intervention, which is the genetic perturbation. As we also have combinations thereof, we pass the column names "gene_target_1" and "gene_target_2". We call this intervention "genetic_perturbation". We use ESM2 embeddings for representing the cytokines, which we have precomputed already for the purpose of this notebook, saved in uns['gene_embeddings']. Thus, we pass the information that "gene_embeddings" stores embeddings of the obs['cytokine'] treatments via perturbation_covariate_reps.

• The sample covariate describes the cellular context independent of the perturbation. We pass the time point via obs['logtime'].

• The split_covariates defines classes within which me map. In contrast to Predicting embryonic phenotypes of genetically modified zebrafish, we want to learn maps not only from unperturbed to perturbed populations, but from early to later ones as well. In particular, we learn maps from the control distribution at the earliest time point to all other unperturbed and perturbed cellular states. We thus don’t have any boundaries for mapping, and set split_covariates to None.

• max_combination_length is the maximum number of gene knockouts seen during training or inference. We set it to 2. Note that this value is also automatically inferred from the maximum number of elements seen in perturbation_covariates, but can optionally set to be higher for inference.

• The null_value is the value which fills the absence of a perturbation, i.e. the value which fills all positions in uns['gene_embeddings']['control'].

cf.prepare_data(
    sample_rep = "X_aligned",
    control_key = "first_t_control",
    perturbation_covariates = {"genetic_perturbation": ("gene_target_1" , "gene_target_2")},
    perturbation_covariate_reps = {"genetic_perturbation": "gene_embeddings"},
    sample_covariates = ("logtime",),
    split_covariates = None,
    max_combination_length = 2,
    null_value = 0.0,
)

100%|██████████| 75/75 [00:05<00:00, 14.05it/s]

cf.prepare_validation_data(
    adata_train,
    name="train",
    n_conditions_on_log_iteration=10,
    n_conditions_on_train_end=10,
)

cf.prepare_validation_data(
    adata_test,
    name="test",
    n_conditions_on_log_iteration=None,
    n_conditions_on_train_end=None,
)

100%|██████████| 75/75 [00:03<00:00, 20.09it/s]
100%|██████████| 2/2 [00:00<00:00, 256.78it/s]

Preparing CellFlow’s model architecture with prepare_model()

We are now ready to specify the architecture of CellFlow.

We only consider the most relevant parameters, for a detailed description, please have a look at the documentation of prepare_model() or Predicting donor-specific cytokine effects on PBMCs.

• We use condition_mode="deterministic" to learn point estimates of condition embeddings, and thus have a fully deterministic mapping. We set regularization=0.0, thus don’t regularize the learnt latent space.

• pooling defines how we aggregate combinations of conditions in a permutation-invariant manner, which we choose to do learning a class token indicated by "attention_token".

• With layers_before_pool we define how to embed the ESM2 embeddings and the log-value of the time. We process them such that have the same scale of dimensionality.

• condition_embedding_dim is the dimension of the latent space of the condition encoder.

• cond_output_dropout is the dropout applied to the condition embedding, we recommend to set it relatively high, especially if the condition_embedding_dim is large.

• pool_sample_covariates defines whether the concatenation of the sample covariates should happen before or after pooling, in our case indicating whether it’s part of the self-attention or only appended afterwards.

• probability_path defines the reference vector field between pairs of samples which the ConditionalVelocityField is regressed against. Here, we use {"constant_noise": 0.5}, i.e. we use a relatively small value as we have a highly heterogeneous cell population. In fact, if we augment a cell with noise, we should be careful not to augment it to the extent that it is e.g. in a completely different organ of the zebrafish.

• match_fn defines how to sample pairs between the control and the perturbed cells. As we have a strongly heterogeneous population, we choose a higher batch size of 2048. We don’t expect large outliers, and are not interested in the trajectory of a single cell, hence we choose tau_a=tau_b=1.0.

We start with defining the layers_before_pool and layers_after_pool.

layers_before_pool = {
    "genetic_perturbation": {"layer_type": "mlp", "dims": [512, 512], "dropout_rate": 0.0},
    "logtime": {"layer_type": "mlp", "dims": [512, 512], "dropout_rate": 0.0},
}

layers_after_pool = {
    "layer_type": "mlp", "dims": [1024, 1024], "dropout_rate": 0.0,
}

We now also explicitly define the match_fn:

match_fn = functools.partial(match_linear, epsilon=0.5, tau_a=1.0, tau_b=1.0)

Now we are ready to prepare the model:

cf.prepare_model(
    condition_mode="deterministic",
    regularization=0.0,
    pooling="attention_token",
    layers_before_pool=layers_before_pool,
    layers_after_pool=layers_after_pool,
    condition_embedding_dim=256,
    cond_output_dropout=0.9,
    hidden_dims=[2048, 2048, 2048],
    decoder_dims=[4096, 4096, 4096],
    probability_path={"constant_noise": 0.5},
    match_fn=match_fn,
    )

Computing and logging metrics during training

We compute the energy distance and MMD during training.

metrics_callback = cellflow.training.Metrics(metrics=["mmd", "e_distance"])
callbacks = [metrics_callback]

Training CellFlow

Finally, we are ready to train our model. We set the number of iterations relatively high as we have a strongly heterogeneous population.

cf.train(
        num_iterations=150_000,
        batch_size=2048,
        callbacks=callbacks,
        valid_freq=30_000,
    )

  0%|          | 0/150000 [00:00<?, ?it/s]2025-04-10 09:18:35.897526: E external/xla/xla/service/slow_operation_alarm.cc:73] Constant folding an instruction is taking > 1s:

  %reduce-window.4 = f32[34518,16]{0,1} reduce-window(%constant.530, %constant.370), window={size=1x16 pad=0_0x15_0}, to_apply=%region_1.770

This isn't necessarily a bug; constant-folding is inherently a trade-off between compilation time and speed at runtime. XLA has some guards that attempt to keep constant folding from taking too long, but fundamentally you'll always be able to come up with an input program that takes a long time.

If you'd like to file a bug, run with envvar XLA_FLAGS=--xla_dump_to=/tmp/foo and attach the results.
2025-04-10 09:18:36.236875: E external/xla/xla/service/slow_operation_alarm.cc:140] The operation took 1.3394634s
Constant folding an instruction is taking > 1s:

  %reduce-window.4 = f32[34518,16]{0,1} reduce-window(%constant.530, %constant.370), window={size=1x16 pad=0_0x15_0}, to_apply=%region_1.770

This isn't necessarily a bug; constant-folding is inherently a trade-off between compilation time and speed at runtime. XLA has some guards that attempt to keep constant folding from taking too long, but fundamentally you'll always be able to come up with an input program that takes a long time.

If you'd like to file a bug, run with envvar XLA_FLAGS=--xla_dump_to=/tmp/foo and attach the results.
100%|██████████| 150000/150000 [2:02:04<00:00, 20.48it/s, loss=3.08]

We can now investigate some training statistics, stored by the CellFlowTrainer.

e_distances_train = cf.trainer.training_logs["train_e_distance_mean"]
e_distances_test = cf.trainer.training_logs["test_e_distance_mean"]

iterations_train = np.arange(len(e_distances_train))
iterations_test  = np.arange(len(e_distances_test))

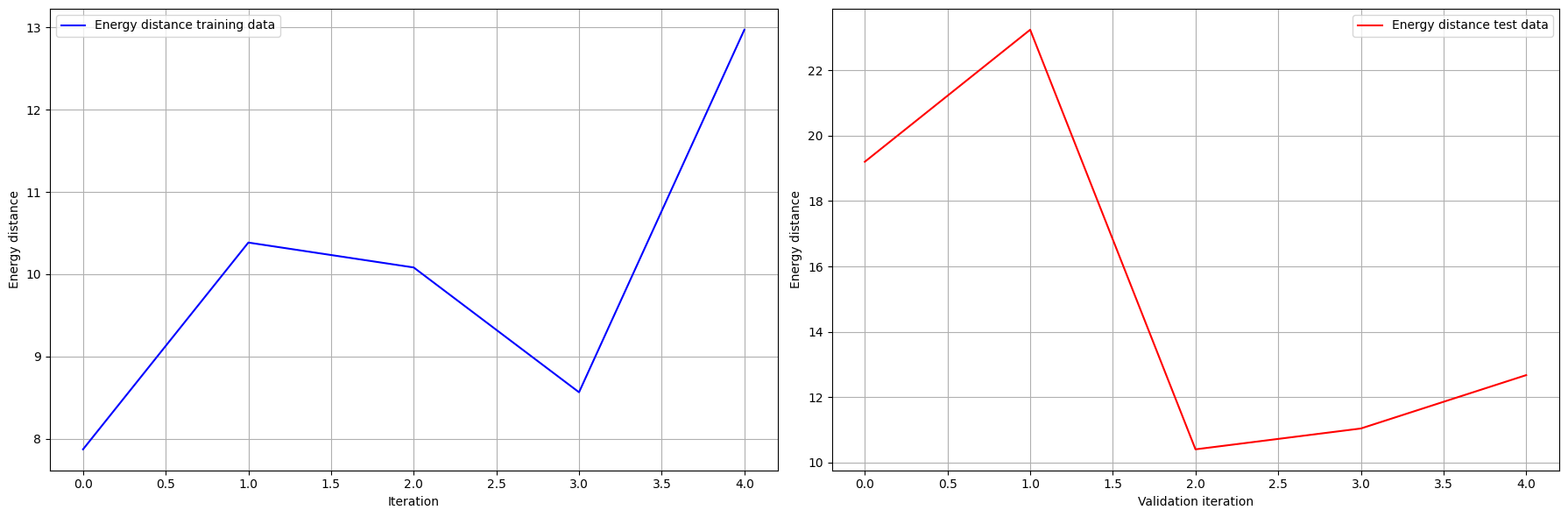

fig, axes = plt.subplots(1, 2, figsize=(18, 6))

axes[0].plot(iterations_train, e_distances_train, linestyle='-', color='blue', label='Energy distance training data')
axes[0].set_xlabel('Iteration')
axes[0].set_ylabel('Energy distance')
axes[0].legend()
axes[0].grid(True)

axes[1].plot(iterations_test, e_distances_test, linestyle='-', color='red', label='Energy distance test data')
axes[1].set_xlabel('Validation iteration')
axes[1].set_ylabel('Energy distance')
axes[1].legend()
axes[1].grid(True)


plt.tight_layout()
plt.show()

Investigating the learnt latent space

We can visualize the learnt latent space for any condition using get_condition_embedding(). Note that get_condition_embedding() returns both the learnt mean embedding and the logvariance. The latter is 0 when condition_mode="stochastic", hence we now only visualize the learnt mean. For now, let’s use all conditions, but indicate whether they’re seen during training or not:

covariate_data_train = adata_train[~adata_train.obs["is_control"].to_numpy()].obs.drop_duplicates(subset=["condition"])
covariate_data_test = adata_test[~adata_test.obs["is_control"].to_numpy()].obs.drop_duplicates(subset=["condition"])

df_embedding_train = cf.get_condition_embedding(covariate_data=covariate_data_train, condition_id_key="condition", rep_dict=adata_train.uns)[0]
df_embedding_test = cf.get_condition_embedding(covariate_data=covariate_data_test, condition_id_key="condition", rep_dict=adata_train.uns)[0]

df_embedding_train["seen_during_training"] = True
df_embedding_test["seen_during_training"] = False
df_condition_embedding = pd.concat((df_embedding_train, df_embedding_test))

100%|██████████| 70/70 [00:00<00:00, 503.81it/s]
100%|██████████| 1/1 [00:00<00:00, 459.65it/s]

We can now visualize the embedding, which is 256-dimensional, by calling plot_condition_embedding(). We first visualize it according to whether it was seen during training or not. We choose a kernel PCA representation, but we recommend trying other dimensionaly reduction methods as well. We can see that the unseen conditions integrate well.

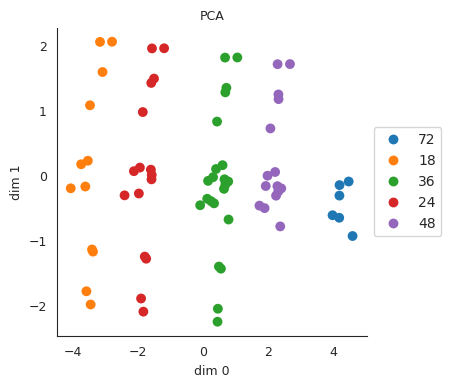

fig = plot_condition_embedding(df_condition_embedding, embedding="PCA", hue="seen_during_training", circle_size=50)

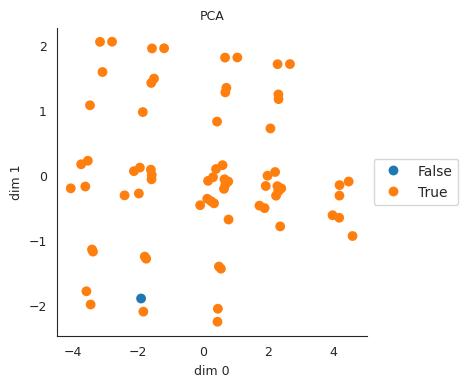

We can see that conditions from the same perturbation cluster along the second principal component of the embedding …

df_condition_embedding["condition"] = df_condition_embedding.index
df_condition_embedding["genetic_perturbation"] = df_condition_embedding.apply(lambda x: "_".join(x["condition"].split("_")[:2]), axis=1)

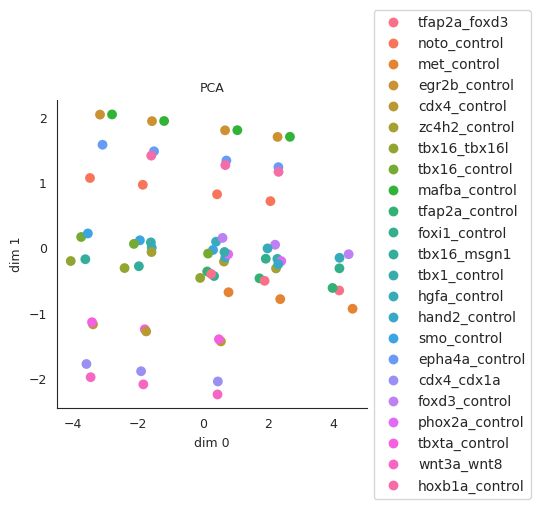

fig = plot_condition_embedding(df_condition_embedding, embedding="PCA", hue="genetic_perturbation", circle_size=50)

… while the first principal component captures the variance across time points.

df_condition_embedding["time_point"] = df_condition_embedding.apply(lambda x: x["condition"].split("_")[-1], axis=1)
fig = plot_condition_embedding(df_condition_embedding, embedding="PCA", hue="time_point", circle_size=50, legend=False)

Predicting with CellFlow

Here, we want to predict the continuous development of the cdx4-cdx1a perturbed zebrafish. Hence, we need to create covariate_data which contains conditions corresponding to densely sampled time points.

def duplicate_and_interpolate(df, column, start, end, steps):
    result = pd.DataFrame()

    for _, row in df.iterrows():
        new_rows = pd.DataFrame([row] * steps)  # Duplicate the row
        new_rows[column] = np.log(np.linspace(start, end, steps)) # Log-transform the time point
        result = pd.concat([result, new_rows], ignore_index=True)

    return result

covariate_data_interpolated = duplicate_and_interpolate(covariate_data_test, 'logtime', 18, 36, 10)
covariate_data_interpolated.loc[:, "condition"] = covariate_data_interpolated.apply(lambda x: "_".join([x.gene_target, str(int(np.round(np.exp(x.logtime))))]), axis=1)
covariate_data_interpolated.head()

	cell	Size_Factor	n.umi	perc_mitochondrial_umis	timepoint	Oligo	hash_umis	top_to_second_best_ratio	cell_type_sub	cell_type_broad	...	log.hash_umis	gene1+gene2	gene_target_1	gene_target_2	condition	is_control	first_t_control	logtime	germ_layer_adapted	first_t_control_str
0	A03_B01_P01-B03_LIG140	0.640595	291.0	0.0	24.0	24h_cdx4-cdx1a_P12_G10	9.0	6.017207	neural progenitor (hindbrain)	neural progenitor (hindbrain)	...	0.954243	cdx4+cdx1a	cdx4	cdx1a	cdx4_cdx1a_18	False	False	2.890372	ectoderm_neural_crest	False
1	A03_B01_P01-B03_LIG140	0.640595	291.0	0.0	24.0	24h_cdx4-cdx1a_P12_G10	9.0	6.017207	neural progenitor (hindbrain)	neural progenitor (hindbrain)	...	0.954243	cdx4+cdx1a	cdx4	cdx1a	cdx4_cdx1a_20	False	False	2.995732	ectoderm_neural_crest	False
2	A03_B01_P01-B03_LIG140	0.640595	291.0	0.0	24.0	24h_cdx4-cdx1a_P12_G10	9.0	6.017207	neural progenitor (hindbrain)	neural progenitor (hindbrain)	...	0.954243	cdx4+cdx1a	cdx4	cdx1a	cdx4_cdx1a_22	False	False	3.091042	ectoderm_neural_crest	False
3	A03_B01_P01-B03_LIG140	0.640595	291.0	0.0	24.0	24h_cdx4-cdx1a_P12_G10	9.0	6.017207	neural progenitor (hindbrain)	neural progenitor (hindbrain)	...	0.954243	cdx4+cdx1a	cdx4	cdx1a	cdx4_cdx1a_24	False	False	3.178054	ectoderm_neural_crest	False
4	A03_B01_P01-B03_LIG140	0.640595	291.0	0.0	24.0	24h_cdx4-cdx1a_P12_G10	9.0	6.017207	neural progenitor (hindbrain)	neural progenitor (hindbrain)	...	0.954243	cdx4+cdx1a	cdx4	cdx1a	cdx4_cdx1a_26	False	False	3.258097	ectoderm_neural_crest	False

5 rows × 37 columns

We also need to provide control cells:

adata_ctrl = adata[(adata.obs["gene_target"]=="control_control") & (adata.obs["timepoint"]==18)]
preds = cf.predict(adata=adata_ctrl, sample_rep="X_aligned", condition_id_key="condition", covariate_data=covariate_data_interpolated)

100%|██████████| 10/10 [00:00<00:00, 634.29it/s]

We now build an adata object to store the predictions in adata.obsm:

adata_preds = []
for cond, array in preds.items():

    obs_data = pd.DataFrame({
        'condition': [cond] * array.shape[0]
    })
    adata_pred = ad.AnnData(X=np.empty((len(array),adata_train.n_vars)), obs=obs_data)
    adata_pred.obsm["X_aligned"] = np.squeeze(array)
    adata_preds.append(adata_pred)

adata_preds = ad.concat(adata_preds)
adata_preds.var_names = adata_train.var_names

We now transfer labels using the 1NN classifier based on the training data. Therefore, we first have to compute a nearest neighbor graph, and then transfer the labels subsequently

compute_wknn(ref_adata=adata, query_adata=adata_preds, n_neighbors=1, ref_rep_key="X_aligned", query_rep_key="X_aligned")
transfer_labels(query_adata=adata_preds, ref_adata=adata, label_key="cell_type_broad")

Now, we can compute the cell type fractions over time:

df_pert_timepoint = adata_preds.obs.groupby(["condition"])["cell_type_broad_transfer"].value_counts(normalize=True).to_frame(name="fraction").reset_index()
df_pert_timepoint["timepoint"] = df_pert_timepoint.apply(lambda x: x["condition"].split("_")[-1], axis=1)
df_pert_timepoint["condition"].unique()

array(['cdx4_cdx1a_18', 'cdx4_cdx1a_20', 'cdx4_cdx1a_22', 'cdx4_cdx1a_24',
       'cdx4_cdx1a_26', 'cdx4_cdx1a_28', 'cdx4_cdx1a_30', 'cdx4_cdx1a_32',
       'cdx4_cdx1a_34', 'cdx4_cdx1a_36'], dtype=object)

We can now visualize the perturbed development of cdx4+cdx1a mutants over time:

cell_types = [
    ("neural progenitor (hindbrain R7/8)", "#CEA92D"),
    ("differentiating neuron 1", "#CEA92D")
]

fig, axes = plt.subplots(1, 2, figsize=(8, 3), sharey=True)

for ax, (cell_type, color) in zip(axes, cell_types):
    data = df_pert_timepoint[df_pert_timepoint["cell_type_broad_transfer"] == cell_type]
    sns.lineplot(
        data=data,
        x="timepoint",
        y="fraction",
        marker="D",
        linestyle="--",
        linewidth=2,
        markersize=8,
        alpha=1.0,
        color=color,
        ax=ax
    )
    ax.set_title(f"{cell_type} fraction over time", fontsize=10)
    ax.set_xlabel("Time Point", fontsize=10)
    ax.set_ylabel("Fraction" if ax == axes[0] else "", fontsize=10)
    ax.tick_params(labelsize=10)

plt.tight_layout()
plt.show()
